Comelit EZ-ULTRAMUGB Ultra Touch VIP Kit

Description

The kit includes: 1 art. UT8090S – wall-mounted complete video and touch screen Ultra ViP entrance panel, 1art. 1441 – 100W power supply unit, 1 art. 1456B – multiuser gateway for ViP system, 1 art. PC3 – power cord, and 1 art. DIN12 – metal mounting rail (the licenses are sold separately).

UT8090S Wall-mounted Complete Video and Touch Screen Ultra VIP Entrance Panel

Ultra series surface-mounted audio/video entrance panel with 5” Touchscreen module for IP (ViP) system. Twilight sensor for touchscreen back lighting management. Omni directional digital microphone and double loudspeaker for high-fidelity audio. Wideangle color video camera with 160° horizontal, 100° vertical field of vision. Audio-visual indications for disabled individuals assistance request. 5” high-visibility capacitive display with impact-proof glass and theme selection (black or white). User-friendly graphic interface, can be customized with virtual call buttons or a number keypad to call the user directly when the code is known. Access control function with audio or audio/video module output and system actuator activation. Option of customizing the buttons for direct calls to the switchboard, commercial activities with corresponding logos and viewing welcome messages. It has a Wiegand output for interfacing with access control systems, an RFID reader for activating an opening using keys or Comelit cards, and a Bluetooth connection. Consists of audio/video module art. UT8020, Touch module art. UT9270 and surface-mounted housing art. UT9173. Just 35 mm protrusion from the wall. Dimensions (L x H x D): 11 x 28.9 x 3.5cm.

1441 100W Power Supply Unit

230Vac/110Vac 100W power supply unit – 55Vdc with DIN bar (6 modules). Dimensions 9.9 x 9.3 x 5.3 Cm.

1456B Multi-User Gateway for VIP System

Gateway for sending video entry phone calls to ViP internal units, Smartphones/Tablets on which the Comelit App has been installed and GSM or landline telephones, subject to a SIP provider service subscription. Requires an Internet connection with adequate network speed. In order to use the functions of a 1456B, it is necessary to purchase as many separate licences as there are apartments to serve. The 1456B can manage 3 types of licence: Master, Slave and Phone. Each licence can be purchased in 5 different sizes (1, 10, 50, 100, 200) and can be added at any time. Art. 1456B manages up to 400 Master licences and up to 200 Slave or Phone licences. Calls can be forwarded to a maximum of 15 different devices per apartment, depending on the device type and the network capacity available for transmission. The gateway has 1 Ethernet port for connection to the ViP system network, and 4 ports (including one POE) for the connection of internal units and routers, two selectable ports with POE and one non-POE port. It also has an input for 40-56 VDC power supply. Dimensions: 7 x 9 x 6.2 Cm (4 DIN modules).

PC3 Power Cord

Three prong power cord.

DIN12 1 Foot DIN Rail (Metal)

1 foot long DIN 12 mounting rail for entrance panel.

Comelit Ultra Touch VIP Kit Installation in NYC

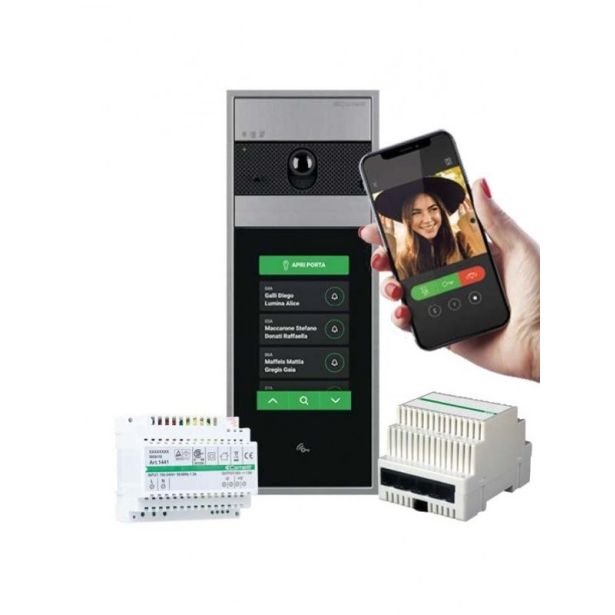

The Comelit EZ-ULTRAMUGB Ultra Touch VIP Kit bundles the Ultra touch screen entrance panel with a power supply, a multiuser gateway, a power cord, and a mounting rail. App licenses are sold separately.

DSS installs the Comelit Ultra Touch VIP Kit across Brooklyn, Manhattan, Queens, the Bronx, Staten Island, and Long Island. A certified technician checks your wiring and existing equipment, mounts and connects the video intercom kit, programs it, and tests it before we leave. We’ve been installing and repairing intercom and security systems in New York for over 35 years, from our office at 1541 E 46th Street in Brooklyn. Learn more about our intercom repair and installation services.

Is the Comelit Ultra Touch VIP Kit Right for Your Building?

• Buildings that want a complete Comelit video entry system in one package
• Property managers who want no monthly payments on their intercom
• Co-ops and condos upgrading to touch screen entry with phone access

Not sure? Tell us about your property and we’ll recommend the right option. You might also compare the Ultra entry panel.

Why Buy Through DSS?

• Professional installation by certified technicians
• Licensed and insured
• Free quote before any work starts
• One company to call for repairs and support
• Service across the five boroughs and Long Island

On Comelit video intercom installs, we offer a 3-year guarantee on Comelit material and a 1-year guarantee on service and labor.

Comelit Ultra Touch VIP Kit FAQs

Do you install the Comelit Ultra Touch VIP Kit in NYC?

Yes, we install the Comelit Ultra Touch VIP Kit across Brooklyn, Manhattan, Queens, the Bronx, Staten Island, and Long Island, and DSS services it afterward. The job is more than mounting a panel. The entrance station has to be powered correctly, connected to the building’s cabling, and matched to the apartments inside. Older New York buildings often have aging wiring, so we look at it first. Pricing starts with a free quote.

How much does it cost to install the Comelit Ultra Touch VIP Kit?

The price depends on three things: the building, how many units or doors it has, and the condition of the wiring. A clean cable run to a small entrance takes far less labor than tracing failed cable in an older walk-up. We inspect the property, then write up a clear price at no charge. You approve that price before we begin, so the number is settled in advance.

Is there a monthly fee for the Comelit VIP Kit?

No, the Comelit VIP Kit has no monthly fee. Our Comelit systems are a one-time cost, so you pay for the equipment and the installation, and the intercom keeps working without a subscription. The only add-ons that are billed separately are property management software and call-log servers. Those suit buildings that want central administration or a record of calls, and they are optional and sold separately.

What warranty do I get?

On Comelit video intercom installs, the warranty has two parts. Comelit material carries a 3-year guarantee, which covers the equipment itself. Our service and labor carry a 1-year guarantee, which covers the installation work we performed. The two terms run separately, so a hardware fault and a workmanship problem fall under different coverage. Splitting them this way makes it clear which one applies when something fails.

What’s included in the Comelit VIP Kit?

The kit includes the Ultra touch screen entrance panel, a power supply, a multiuser gateway, a power cord, and a mounting rail. The panel is the part visitors use, the power supply feeds it, and the rail holds it in place. App licenses are not part of the kit and are sold separately, so work out how many residents will want phone access before you order.

How long does it take to install the Comelit Ultra Touch VIP Kit?

Most single-door or single-unit installs are finished in one visit. Time grows with the number of entrances and apartments, because each added unit means more cable to test and more connections to make. Older buildings can add time when we find damaged or undocumented wiring behind the walls. We give you a timeline with your quote, so you know the expected schedule before you approve anything.

Do you repair the Comelit Ultra Touch VIP Kit if it stops working?

Yes, we diagnose and repair the Comelit Ultra Touch VIP Kit along with the wiring and power around it. That matters because many intercom failures are not in the panel at all. A weak power supply, a loose connection, or a damaged cable can cause the same symptoms, so we test those first. If a repair doesn’t make sense, we explain replacement options and prices first.

Which areas do you serve?

We serve Brooklyn, Manhattan, Queens, the Bronx, Staten Island, and Long Island. Our office is at 1541 E 46th Street in Brooklyn, in the 11234 ZIP code. Whether the building is a Manhattan high-rise, a Queens walk-up, or a Bronx apartment house, the process begins with the same inspection of the wiring and existing equipment before any price is set.

Ready for a quote? Call (212) 262-2820 or contact us.
